Leading the Polygon Milling Industry
Over two decades of precision manufacturing excellence in Chennai
Universal Machine Shop was established in 2000 as Chennai's premier polygon milling specialist. With 15 dedicated employees and 7 state-of-the-art polygon milling machines, we deliver unmatched precision and reliability.

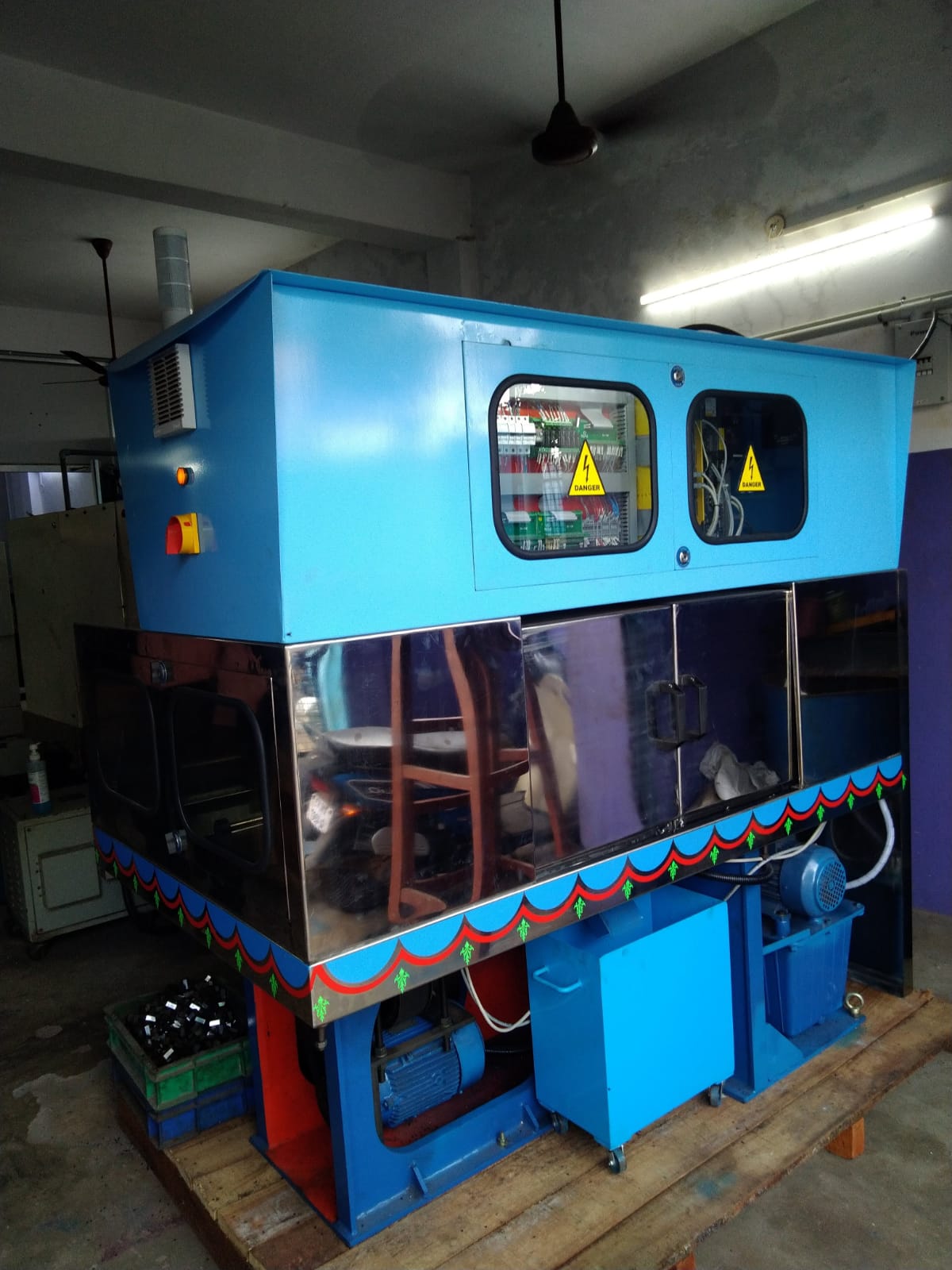

5 × A42-Type PLC
Polygon Milling Machines
1 × A60-Type PLC
Polygon Milling Machine
1 × A60-Type CNC
Polygon Milling Machine
1 × Dual Spindle
Polygon Milling Machine
Our Capabilities
- Odd & Even polygon surfaces on OD
- Face side & middle diameter milling
- Both ends with profile relation
- Radius milling (Concave & Convex)
- Taper milling (Any angle)
- Custom profiles & specifications
Hard Work
With our professional attitude and dedication, we've established ourselves as leaders in insertable form tool systems, offering individual customer-specific grooving tools from batch sizes of 3 to 50 pieces with the highest quality.
Tools & Systems
Our self-developed grooving tools based on Schwanog tip holders and tool blanks enable individually ground and wirecut contours, providing customers with up to 40% cost savings in production.
Innovative Strength
With over 100,000 custom tools manufactured, we've become a world-leading grooving tool manufacturer, capable of quickly and flexibly supplying individually manufactured tools in the shortest possible time.
Working Field
Whether your company works in turning, drilling, broaching, or milling, we are the ideal partner for precision manufacturing solutions tailored to your specific requirements.

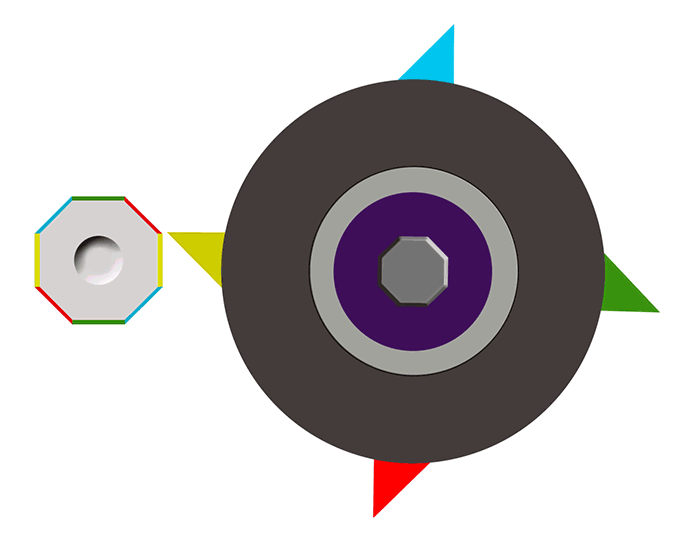

Polygon Milling Animation
See our precision milling process in action
Precision Milling Services
We provide cost-effective, quality products with complete customer satisfaction
Radius Milling Process

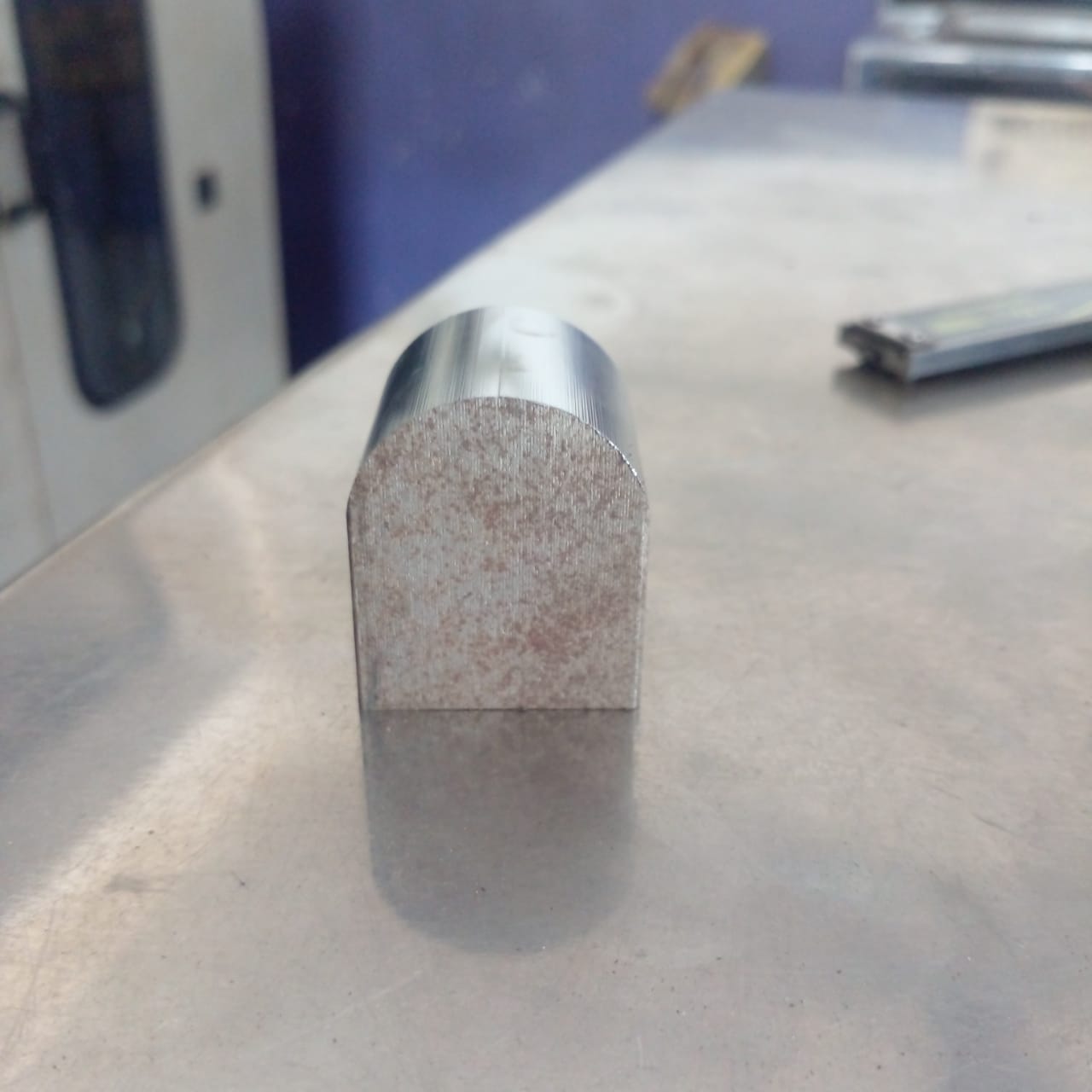

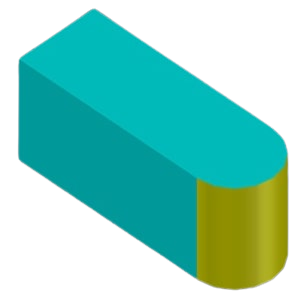

Radius Milling
This diagram suitable for double side milling across flat.

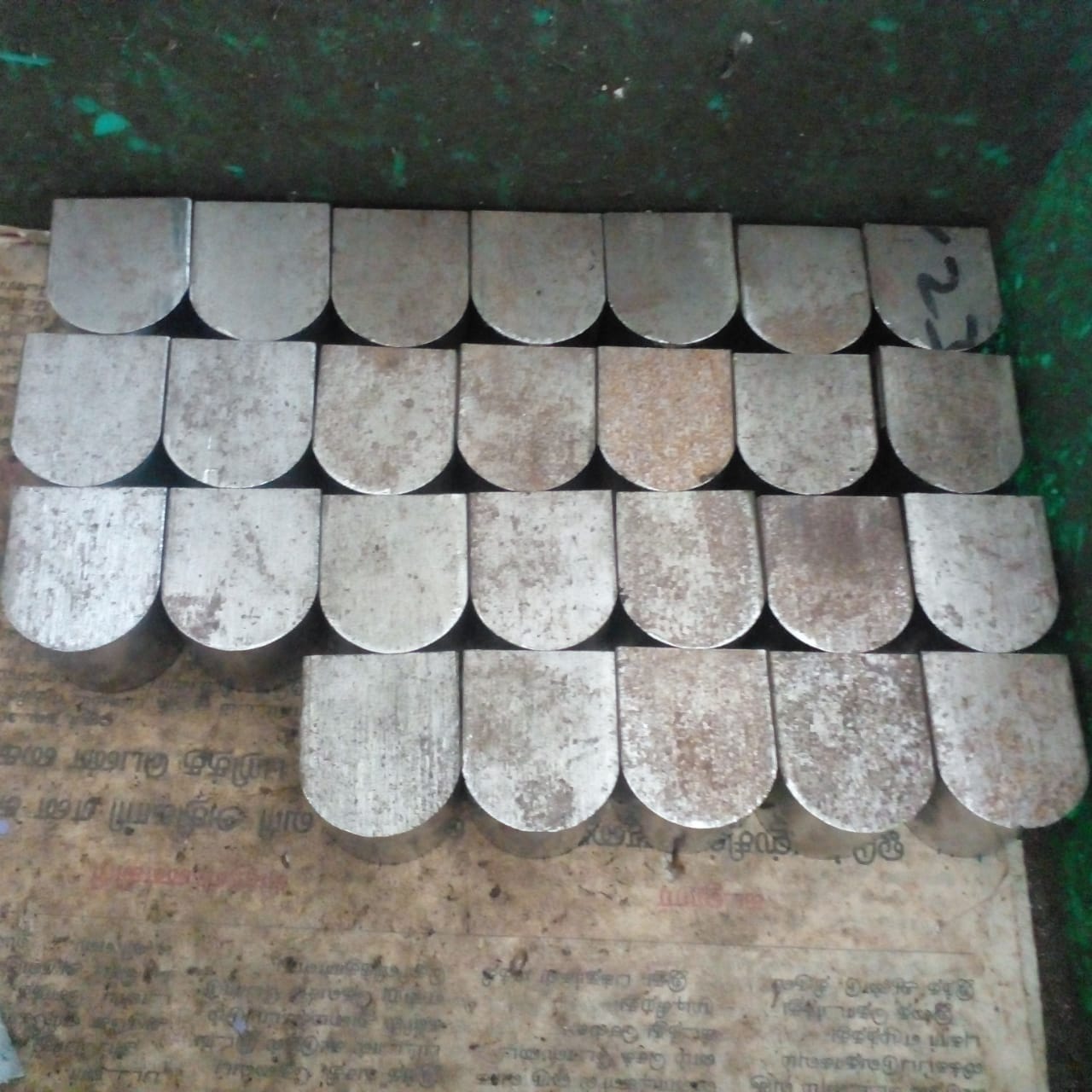

Radius Milling Group
This diagram suitable for double side milling across flat.

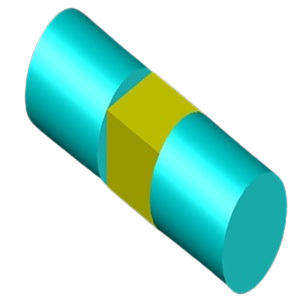

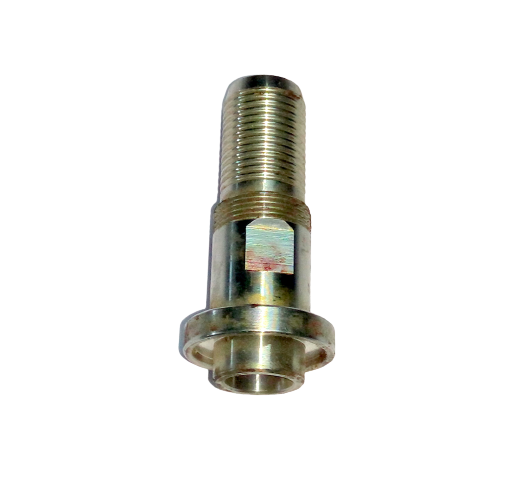

Across Flat Milling Middle Part
This profile is applicable for Stud making purpose.

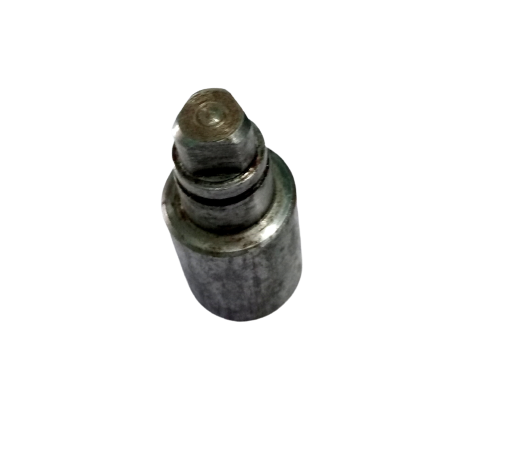

Triangle Milling
Triangle profile is special one and applicable in Electrical panel key board, like door panel.

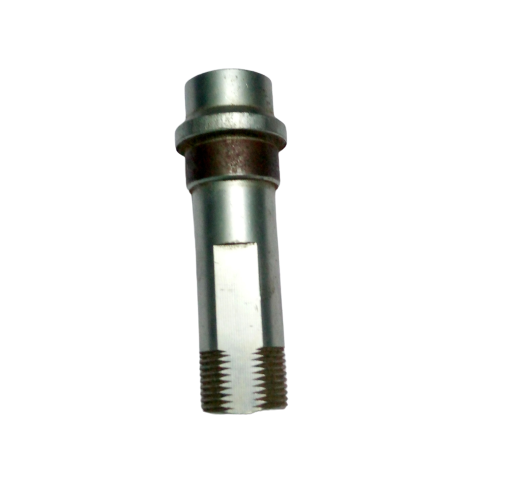

Across Flat Milling
This profile is applicable for Stud making purpose.

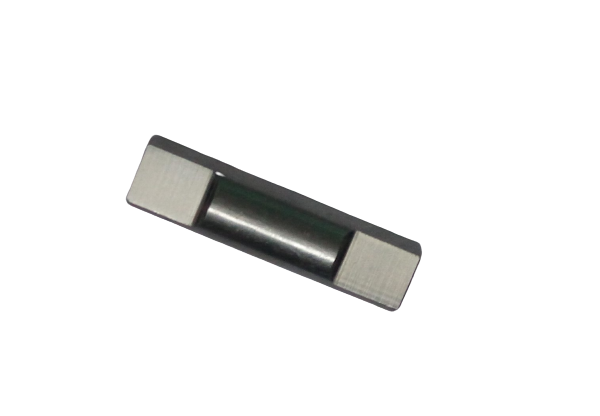

Double Side Across Flat Milling
Special profile for symmetricity - gate valve steam, drive shaft in Automobile Engine.

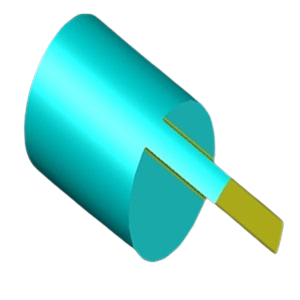

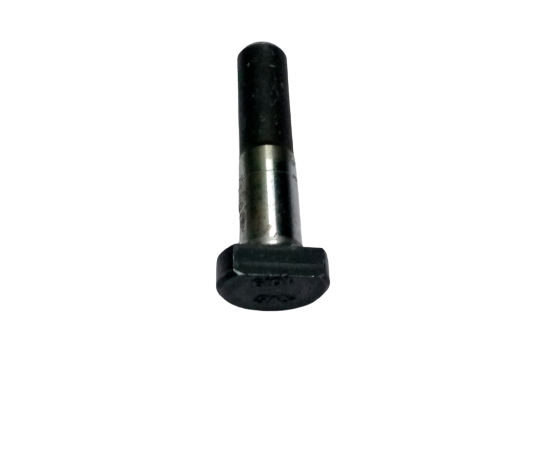

Single Side Across Flat Milling
Offset milling for Automobile Engine, Valve Manufacturing, Textile, Aerospace Industries.

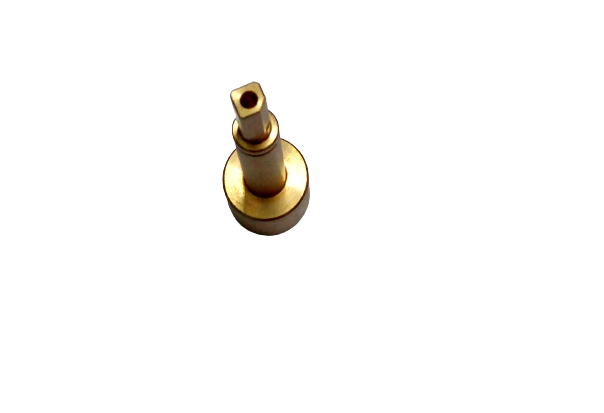

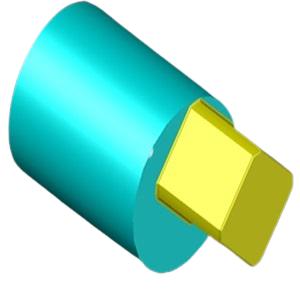

Square Milling With Offset
Double end A/F Milling for Valve Manufacturing Industries, drive shaft applications.

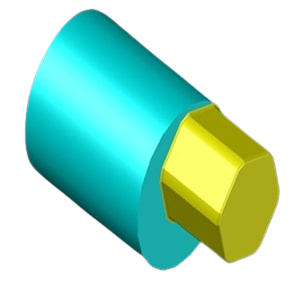

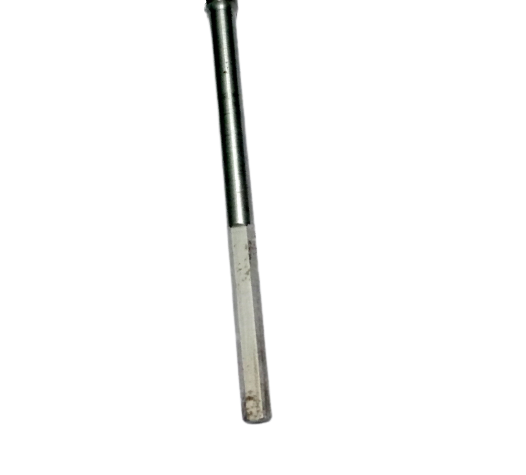

Hexagonal Milling on Tiny Part
Performed at any offset distance according to customer requirements.

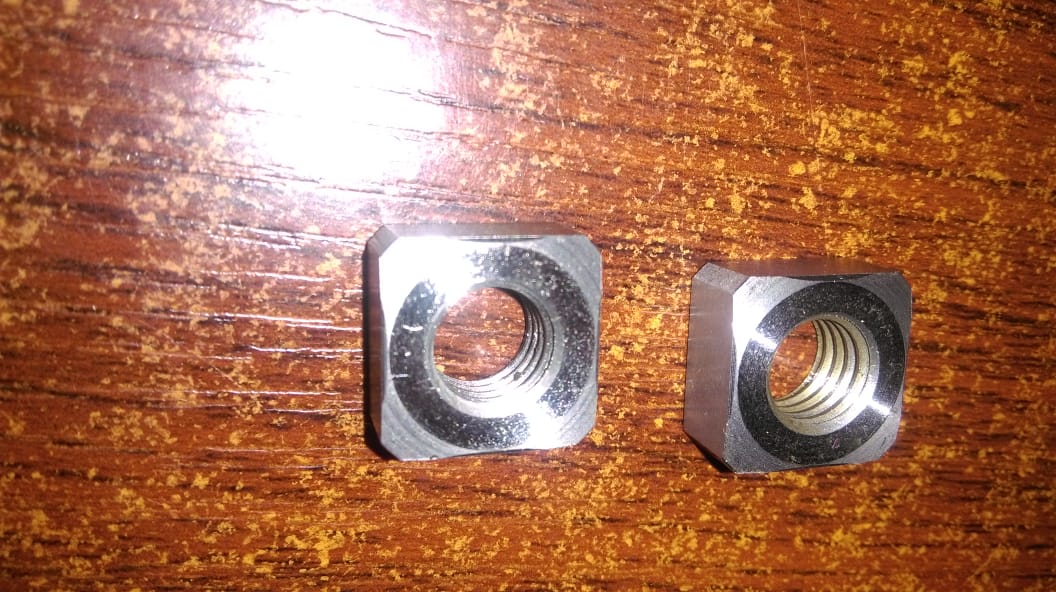

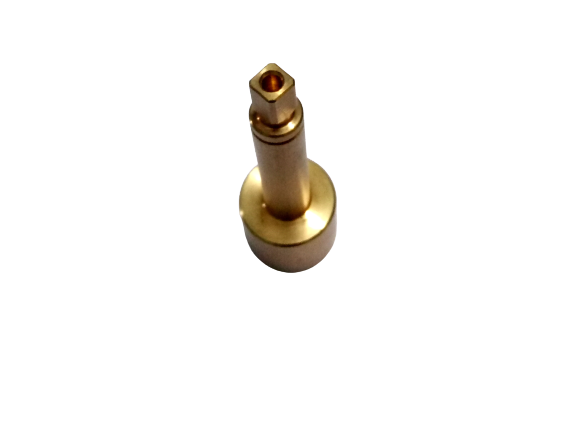

Square Milling
General purpose profile applicable in Valve Industries, Automobile Industry.

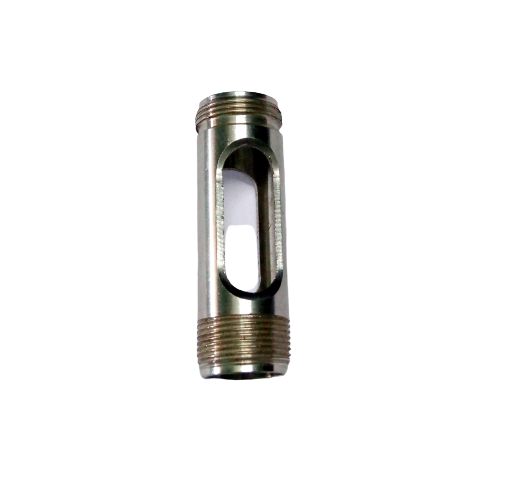

Across Flat Milling With Radius
Very rare case profile at any offseted distance. Applicable at Electrical Connectors.
Across Flat Double Side
This diagram suitable for double side milling across flat.

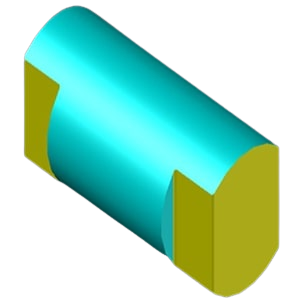

Double End Across Flat
This diagram suitable for double side milling across flat.

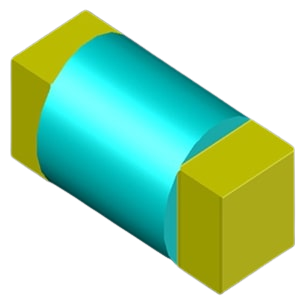

Double End Square Milling
This diagram suitable for double-end-square-milling.

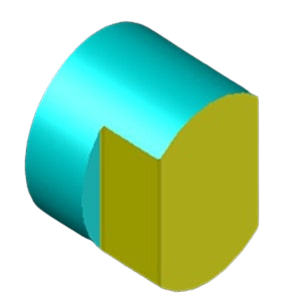

Double Side Across Flat
This diagram suitable for double-side-across-flat.

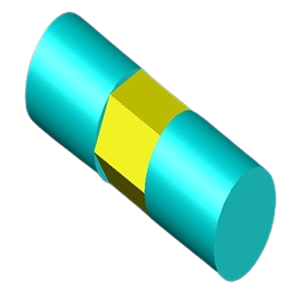

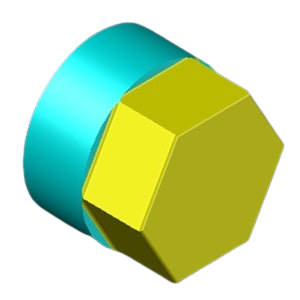

Hexagon Milling
This diagram suitable for hexagon-milling.

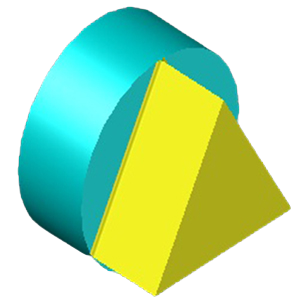

Triangle Milling Diagram
This diagram suitable for triangle-milling.

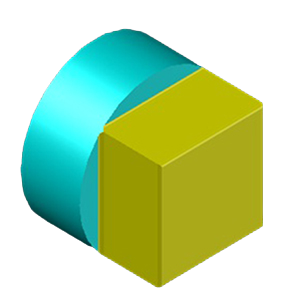

Square Milling Diagram
This diagram suitable for square-milling.

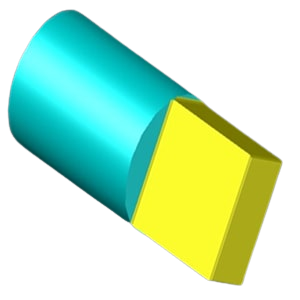

Rectangle Milling
This diagram suitable for rectangle-milling.
Single Side Milling
This diagram suitable for single-side-milling.
Product Portfolio
Over 100,000 tools made to customer drawings - delivering excellence worldwide
.png)
Company Location
Visit us at our Chennai facility
Contact Us
We're here to help with your polygon milling needs
Address
No.25/21, Kulakkarai Street,
Pattaravakkam,
Between Sidco Industrial Estate,
Ambattur Circle, Chennai - 600098,
Tamilnadu, India
